Biosafety Cabinet (BSC) Comprehensive Certification: NSF-49 9-Point Physical Audits, ISO Class 5 Airborne Particle Counting, and Microbial Air/Surface Testing

In biopharmaceuticals (GMP), virology research, cell therapy, clinical pathology, and biosafety laboratories (BSL-2 / BSL-3), **Class II Biosafety Cabinets (BSCs)** serve as primary containment units to prevent pathogen aerosol escape while safeguarding product sterility. According to **NSF/ANSI 49**, **ISO 14644**, and biosafety guidelines, BSCs require periodic physical and environmental microbial testing. READY Lab provides specialized on-site field certification services across Taiwan.

⁂ Standard Physical Performance Metrics: NSF-49 9-Point BSC Testing

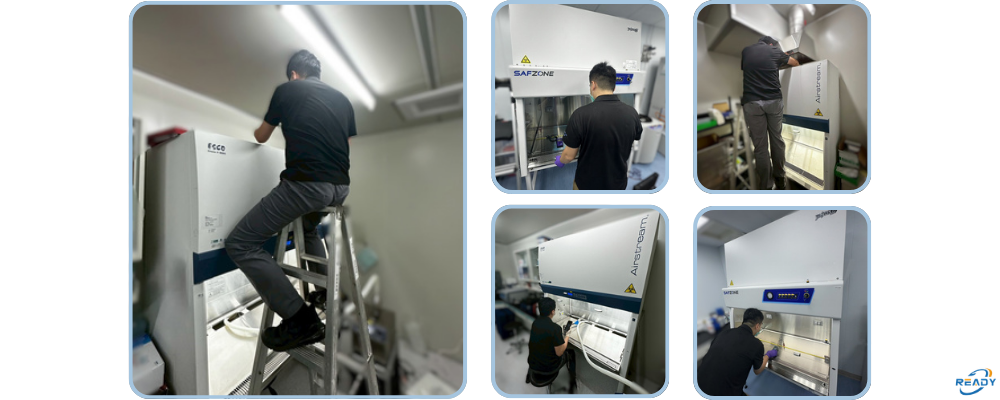

Utilizing calibrated reference standards, our field engineering team executes structured 9-point physical audits across Class II biosafety cabinets:

• 1. Inflow Velocity Profiling: Measuring face suction air velocity at the front sash aperture to verify negative pressure containment barriers.
• 2. Downflow Velocity Profiling: Measuring vertical downflow laminar air velocities across a multi-point grid in the work zone to verify flow uniformity.
• 3. HEPA/ULPA Filter Leak Testing: Introducing PAO/DOP aerosol challenges to scan supply and exhaust HEPA media and perimeter gaskets for micro-leaks.
• 4. Airflow Smoke Pattern Testing: Utilizing neutral-density smoke to visualize air streamlines, confirming zero sash spillover and smooth downward intake.
• 5. Front Sash Height Alarm Audits: Verifying audiovisual alarms and blower interlocks when the front sash is raised beyond safe working limits.
• 6. Lighting Intensity Testing: Measuring workspace illuminance (Lux) to ensure adequate visibility.
• 7. UV Lamp Intensity Audits: Measuring UVC germicidal lamp irradiance (μW/cm²) using dedicated radiometers to track output decay.
• 8. Operational Noise Level Audits: Measuring decibel levels (dBA) at the operator position during active blower operation.
• 9. Mechanical Vibration Audits: Measuring workspace dynamic vibration displacement to prevent interference with microscopic or micro-weighing tasks.

⁂ Environmental Cleanliness & Microbial Audits: Particle Counting & Drop Plate Testing

Beyond physical parameters, we deliver environmental particle and microbial sampling aligned with audit standards (PIC/S GMP, ISO 14644):

• Airborne Particle Count Audits: Measuring particle concentrations ≥ 0.5μm and ≥ 5.0μm using laser particle counters to verify ISO Class 5 (Class 100) cleanroom compliance.
• Settling Plate Microbial Audits: Exposing settle plates across work zone positions followed by incubation to quantify colony forming units (CFU/plate).

⁂ Technical Documentation & Audit-Ready Reporting

READY Lab's service network extends across Taiwan—including science parks, medical centers, and biotechnology clusters in Taipei, Hsinchu, Taichung, and Tainan. Following field testing and microbial incubation, we deliver structured certification reports complete with calibration certificates, raw data tables, and microbial incubation results for your quality management records.
