Biosafety Cabinet (BSC) & Laminar Flow Clean Bench HEPA Replacement Evaluation: Data-Driven Solutions Combining Usage Frequency & Annual Audit Telemetry

In biopharmaceuticals, cell culture, clinical pathology, and research facilities, **Class II Biosafety Cabinets (BSCs)** and **Laminar Flow Clean Benches** serve as critical containment barriers delivering particulate-free air. High-Efficiency Particulate Air (HEPA / ULPA) filters represent primary consumable modules. However, determining the exact window for filter replacements is often challenging. READY Lab adheres to a data-driven philosophy, **combining your facility's real-world operational frequency with annual field audit data** to provide objective, evidence-based replacement evaluations.

⁂ Dual Evaluation Framework: Synthesizing Operational Load & Annual Physical Data

Filter saturation rates depend on cleanroom environments and total operational hours. We evaluate filter health across two core parameters:

• 1. Real-World Usage Frequency Analysis: Assessing whether equipment operates 24/7, under high daily duty cycles, or intermittently, while evaluating pre-filter maintenance logs to project HEPA lifespan.
• 2. Annual Physical Audit Data Trends: Measuring three key physical indicators during annual field testing:
  • Inflow & Downflow Velocity Attenuation: Evaluating whether face air velocities fall near or below safe threshold limits under maximum blower duty.
  • Pressure Drop Accumulation: Monitoring differential pressure across filter media to determine particulate loading and blower strain.
  • Aerosol Leak Testing (PAO/DOP Challenge): Scanning filter media and frame gaskets to detect pinhole leaks or frame bypass gaps.

If annual telemetry demonstrates stable velocities, acceptable differential pressure, and zero leaks, we recommend continued operation. If metrics indicate threshold saturation or leakage, our engineers provide formal evaluation reports recommending scheduled HEPA/ULPA replacement.

⁂ Standardized Filter Replacement & Post-Service Validation

When filter replacement is indicated, READY Lab provides turnkey technical execution:

• Pre-Maintenance BSC Gaseous Decontamination: For biosafety cabinets, executing H₂O₂ gas decontamination prior to biohazardous HEPA removal to protect technicians and facility environments.

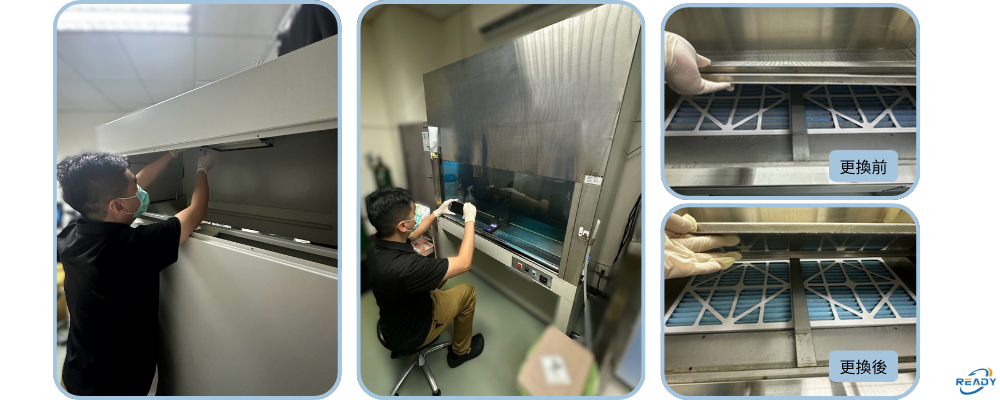

• Specification HEPA/ULPA Swaps & Perimeter Sealing: Replacing model-matched primary filters with complete perimeter gasket sealing.
• Post-Service Velocity & ISO Class 5 Particle Audits: Balancing inflow/downflow velocities and verifying workspace cleanliness meets ISO Class 5 (Class 100) criteria using laser particle counters.

⁂ Taiwan-Wide On-Site Technical Services & Compliance Reporting

READY Lab's service network covers all of Taiwan—including major science parks, medical centers, and biotechnology clusters in Taipei, Hsinchu, Taichung, and Tainan. Our engineering team executes on-site audits, data evaluations, and filter replacements, delivering formal technical reports for your quality management records.
