Laminar Flow Clean Bench Filtration Maintenance: HEPA & Pre-Filter Swaps (Every 1-3 Years) and Post-Service Airflow & Particle Count Testing

In biomedical research, cell culture, sterile dispensing, and precision assembly, laminar flow clean benches are essential equipment for delivering localized particulate-free air. Filtration modules are critical to maintaining laminar air balance. Over continuous operational hours, primary pre-filters and primary HEPA units accumulate airborne particulates, causing pressure drops and velocity attenuation. READY Lab delivers on-site filter module replacements and physical field validation across Taiwan.

⁂ Filter Module Replacements: Pre-Filters and HEPA Units

Based on usage frequency and ambient cleanroom conditions, **we recommend evaluating and replacing filtration components every 1 to 3 years** to avoid media failure and motor strain:

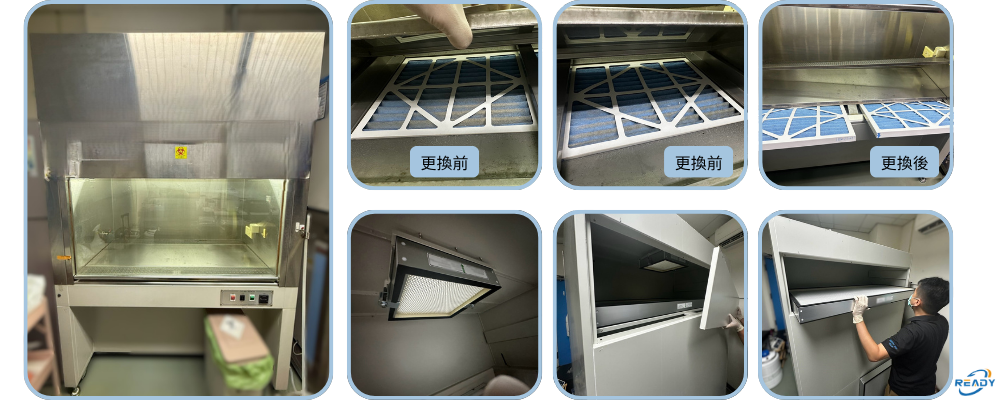

• Routine Pre-Filter Swaps: Replacing intake pre-filter media to capture larger particulate matter, protecting downstream HEPA filters and extending primary module lifespans.
• Primary HEPA Filter Replacements: Swapping saturated primary HEPA/ULPA modules when face velocity attenuates, complete with perimeter gasket sealing to prevent bypass leaks.

⁂ Post-Service Field Validation: Downflow Velocity and Particle Count Testing

Following component replacements, field testing is required to verify that laminar airflow and cleanliness parameters conform to standard specifications:

• Downflow Velocity Profiling: Measuring face velocity across multi-point grid positions to calculate mean air velocities (e.g., 0.3–0.5 m/s) and verify convection uniformity.
• Airborne Particle Count Audits: Sampling workspace air using calibrated particle counters to verify that particulate counts ≥ 0.5μm satisfy ISO Class 5 (Class 100) criteria.

⁂ Taiwan-Wide On-Site Technical Services & Formal Reporting

READY Lab's service network extends across Taiwan—including major science parks, university medical centers, and biotechnology clusters in Taipei, Hsinchu, Taichung, and Tainan. We deploy trained field engineers directly to your site to execute filter replacements and validation, delivering structured technical reports for your quality management records.
