CO₂ Incubator Inlet Filter Burst Troubleshooting, Parts Replacement & Gas Auto-Switchover Solution

Replacing CO₂ gas cylinders is a routine task in everyday cell culture laboratories. However, many facilities have experienced a startling scenario: right after opening the valve of a newly installed cylinder, a loud pop is heard inside the incubator, followed by gas leaks or persistent low concentration alarms. Disassembly usually reveals that the internal inlet HEPA filter has burst or detached under extreme pressure.

? What Causes the Internal CO₂ Inlet Filter to Burst During Cylinder Swaps?

The root cause of this incident rarely lies within the incubator itself, but rather stems from **"sudden high-pressure gas surge"** during the process:

• Unreleased Regulator Pressure: Full gas cylinders hold extreme internal pressure. If the pressure regulator knob is not completely loosened and zeroed out before opening the cylinder's main valve, an immense spike of compressed gas forces its way into the incubator in a fraction of a second.
• Fragile Internal Components: The small inlet filters inside the incubator are designed primarily to strain out airborne contaminants. Their thin plastic housings and rubber hose connections cannot withstand heavy pneumatic surges, resulting in shattered filter casings or blown-out tubings.

? READY Lab: Prompt On-Site Filter Replacement & Leak Checks

If an emergency occurs, shut off the gas cylinder immediately! READY Lab offers prompt technician deployment to perform professional repairs:

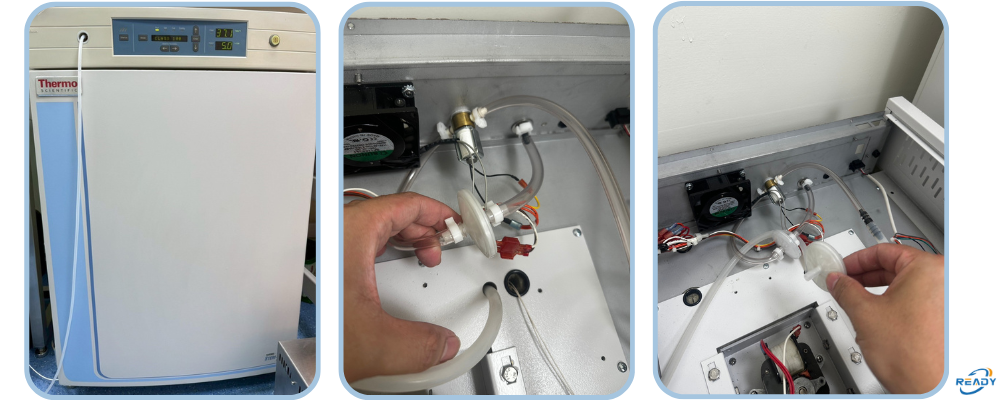

• Premium Inlet Filter Replacement: Removing shattered filter elements and replacing them with premium, compatible inlet HEPA filters to maintain strict sterile air supply.
• Gas Line Repair & Reinforcement: Re-routing and securing deformed or detached internal gas lines, followed by rigorous pressure leak testing to guarantee seamless operation.

? Preventative Upgrade: Gas Auto-Switchover System Installation

To eliminate human operational errors and filter blowouts caused by constant manual cylinder swaps, we highly recommend upgrading to an **Automated Gas Switchover System**:

• Pressure Buffering for Steady Inflow: The automatic switcher features a dual-stage regulation mechanism that acts as a buffer, mitigating sudden high-pressure shocks to the incubator.
• Seamless Transition Without Disassembly Risks: By connecting both primary and secondary cylinders, the system shifts automatically when one bottle empties. Operators can swap empty cylinders safely while the incubator receives an uninterrupted, stable gas supply.
