Dry Bath / Dry Block Heater Calibration Service

Dry bath heaters are widely used for sample incubation, enzyme reactions, and molecular biology applications. Accurate and stable temperature control is essential to ensure reliable experimental results.

READY Biotech provides professional calibration services tailored to customer requirements.

Calibration Conditions

The calibration was performed under the following conditions:

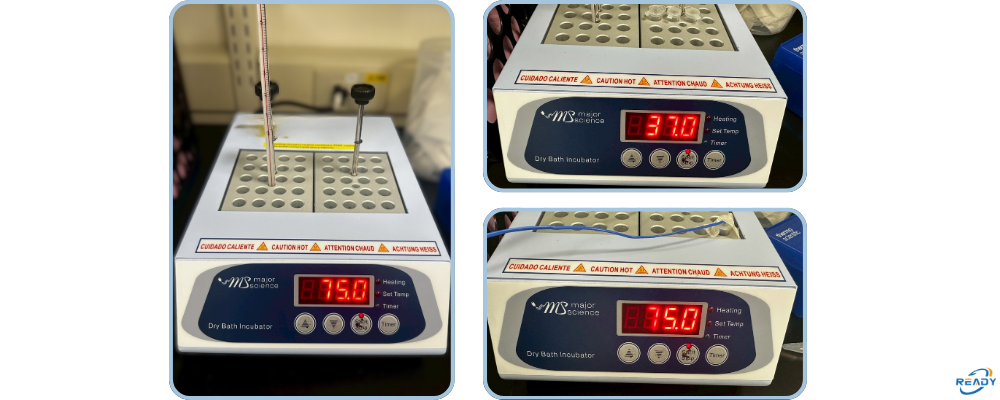

■ Test temperatures: 37°C and 75°C
■ Measurement points: Three points (upper-left, center, lower-right)
■ Logging duration: Continuous 1-hour temperature recording

This setup allows evaluation of temperature distribution within the device.

Temperature Logging & Trend Analysis

During calibration, temperature data is continuously recorded and analyzed:

■ Temperature trend graph
■ Heating and stabilization behavior
■ Temperature fluctuation trends

A complete temperature curve is included in the final report.

Data Analysis (Max / Min / Average)

Recorded data is analyzed to determine:

■ Maximum temperature (Max)
■ Minimum temperature (Min)
■ Average temperature (Avg)

These parameters help evaluate stability and uniformity.

Panel vs. Measured Value Comparison

The calibration also includes comparison between:

■ Panel displayed temperature
■ Measured temperature using reference sensors
■ Deviation analysis

This ensures the displayed value accurately reflects actual conditions.

Equipment Performance Verification

The calibration verifies:

■ Temperature stability
■ Uniformity across measurement points
■ Accuracy of temperature control

■ Overall equipment performance

If your dry bath or dry block heater requires temperature calibration, mapping, or data logging services, feel free to contact READY Biotech.
