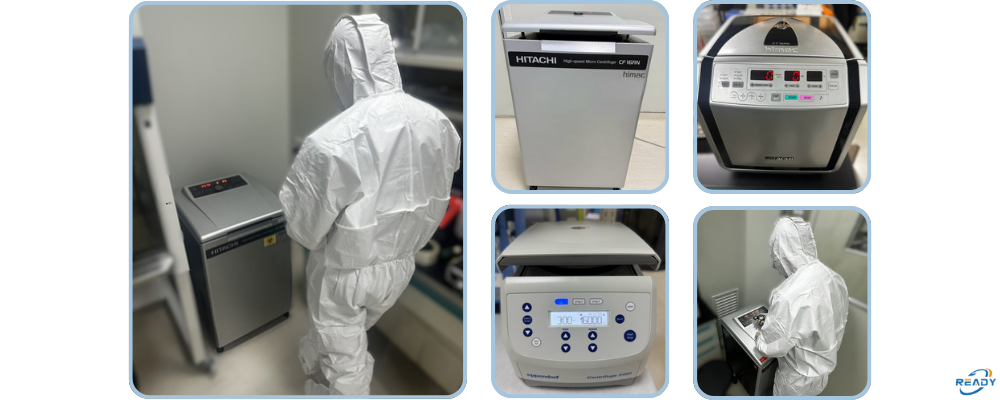

HITACHI / HIMAC Floor-Standing Centrifuge Physical Parameter Calibration: Speed (RPM), Time, and Temperature Testing (Standard & TAF Accredited Reports)

In biopharmaceuticals (cGMP), vaccine manufacturing, proteomics research, clinical pathology, and polymer science, Japanese **HITACHI / HIMAC floor-standing centrifuges (such as the CR-N high-speed series, CP-NX ultracentrifuge series, and CS micro-ultracentrifuge series)** represent benchmark high-end separation systems. Because floor-standing units deliver high acceleration, high drive power, and precision refrigeration, speed (RPM), timer duration, and chamber temperature accuracy directly determine separation yields and biological sample viability. READY Lab provides professional on-site field calibration services across Taiwan with flexible TAF or standard reporting options.

⁂ Three Core Physical Metric Audits: Speed, Time, and Temperature

Utilizing calibrated reference standards, our field engineering team conducts structured physical audits across HIMAC floor-standing units and active rotor configurations (fixed-angle, swing-bucket, or continuous-flow rotors):

• Rotational Speed Verification (RPM): Utilizing calibrated non-contact laser tachometers aimed at reflective targets during dynamic rotor rotation to measure physical offsets against panel readouts.
• Timer Accuracy Calibration: Verifying integrated timing controls against traceable digital stopwatches to prevent operational timing errors.
• Refrigerated Chamber Temperature Mapping: Deploying calibrated thermal sensors in refrigerated units during steady-state high-speed runs to evaluate temperature accuracy and internal stability.

⁂ Dual Reporting Options: TAF ISO/IEC 17025 Accredited & Standard Reports

We offer flexible reporting tiers tailored to your facility's regulatory requirements (ISO 15189, GMP, CAP):

• TAF ISO/IEC 17025 Accredited Calibration Reports: Administered under accredited laboratory criteria, featuring international marks (ILAC-MRA / TAF) and full measurement uncertainty budgets—ideal for formal audits.
• Standard Internal Test Reports: Measured using calibrated reference standards to provide physical offset evaluations and data graphs for routine maintenance records.

⁂ Taiwan-Wide On-Site Technical Services Bypassing Transit Risks
