Did You Know Storage Layout Directly Alters Internal Temperatures? Refrigerator & Freezer Validation: 12/24-Hour Telemetry and Layer Thermal Profiling

In biomedical facilities, clinical trials, biopharmaceuticals, and testing laboratories, refrigerators, freezers, and ultra-low units are essential assets for preserving specimens and reagents. To satisfy quality management standards, cabinet heat distribution must conform to defined Acceptance Criteria. READY Lab provides professional on-site validation (travelling calibration) across Taiwan, configuring custom sensor placement grids and 12-hour or 24-hour continuous telemetry logging to capture real-world thermodynamics.

⁂ Critical Insight: Did You Know Item Placement Directly Alters Temperature Variations?

A key physical factor often overlooked during facility audits is that **sample storage density, height, and physical arrangement directly govern internal air convection**:

• Blocking Air Discharge Ducts: Storing items too close to cold air discharge ports restricts airflow, causing localized freezing while preventing convection to outer shelves.
• Over-Packing Impairs Convection: Excessively dense shelf storage without clearance gaps impedes natural circulation, resulting in distinct temperature differentials between upper and lower shelves.

⁂ Multi-Dimensional Mapping: Layer Differential Analysis and Acceptance Audits

Utilizing traceable multi-channel data telemetry systems, our field engineers execute structured validation protocols:

• Custom Sensor Grids & Shelf Profiling: Deploying sensors across geometric positions (e.g., 5, 9, or 15 points) to isolate high- and low-temperature shelves (such as top, bottom, or door zones).
• 12-Hour / 24-Hour Telemetry Logging: Continuously recording dynamic curves over 12 or 24 hours to track ambient fluctuations, compressor duty cycles, and automatic defrost spikes.
• Acceptance Criteria Evaluation: Auditing recorded maximum and minimum thermal data against facility SOP limits (e.g., 2°C to 8°C or -20°C ± 3°C) to verify compliance.

⁂ Remediation Protocols: Load Placement Consultations and Controller Calibration

If measured parameters exceed acceptance limits, READY Lab field engineers provide technical remediation and actionable engineering advice on-site:

• Storage Layout Optimization: Advising on sample placement based on real-world thermal maps, guiding clear spaces around air ducts to eliminate convection dead zones.
• Control Panel Offset Adjustment: If systematic offsets occur, engineers adjust controller offset parameters to align display readouts with actual internal temperatures.

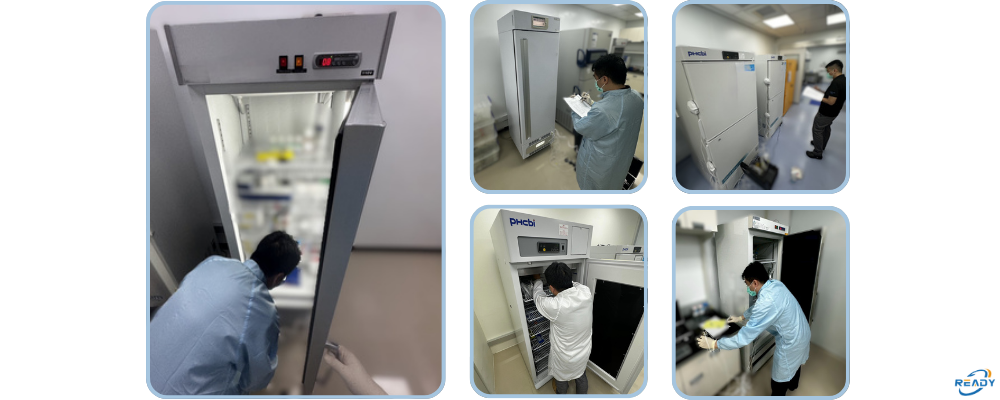

⁂ Taiwan-Wide Field Validation and Technical Reporting

READY Lab's service network extends across Taiwan—including major science parks, medical centers, and industrial biotechnology clusters in Taipei, Hsinchu, Taichung, and Tainan. We deploy trained engineers to execute field validation, delivering formal technical reports complete with raw data, graphical profiles, and engineering recommendations for your quality management records.
