Vacuum Oven Temperature Validation Service

Vacuum ovens are widely used in drying, degassing, material processing, and research applications. To ensure stable and uniform temperature performance under various operating conditions, systematic temperature mapping and repeatability verification are essential.

READY Biotech provides comprehensive vacuum oven temperature validation services to verify temperature uniformity, control accuracy, and reproducibility under both empty and loaded conditions.

Empty Chamber Temperature Mapping (Low / Mid / High Setpoints)

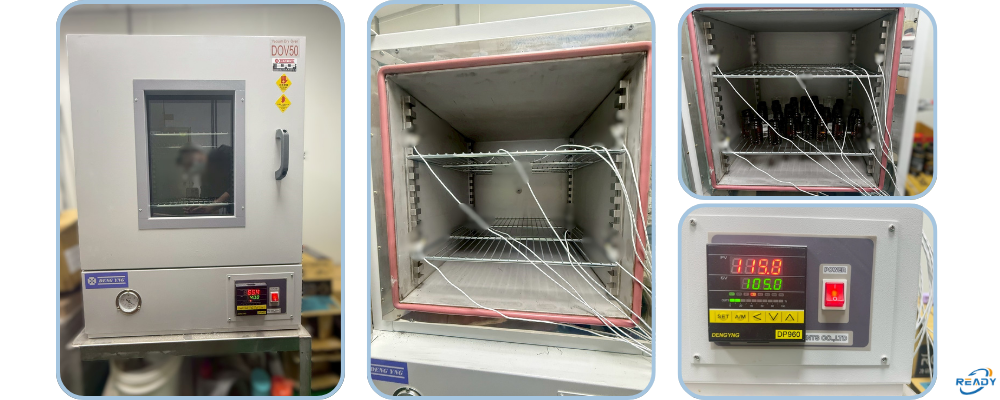

Multi-point temperature sensors are placed inside the chamber and tested at:

• Low temperature setpoint

• Mid temperature setpoint

• High temperature setpoint

This evaluation verifies temperature uniformity, heating efficiency, and control accuracy across the operating range.

Loaded Temperature Verification (Triple Runs at One Setpoint)

Under actual loading conditions, one selected temperature is tested:

• Simulated real-use loading

• Three consecutive runs under identical conditions

• Assessment of repeatability and stability

Temperature Trend Graph (Start-up to Stabilization)

Complete temperature trend graphs are provided, including:

• Initial temperature before start-up

• Heating phase

• Vacuum stabilization impact

• Time to reach setpoint

• Holding stability performance

Customized validation conditions are available upon request.
